ILLUCO

Dermatoscope / IDS-1100 Series

IDS-1100 &
IDS-1100C

Dermatoscope, reinvented by optical experts IDS-1100 series, the hybrid dermatoscope featuring both cross and parallel polarization light, renowned for its excellent optics and bright illumination.

download catalog download catalog

CONTEMPORARY
DERMATOSCOPE

Experience the finest dermatoscopes with the largest field of view you've ever seen.

Field of View

22mm widest field of view

Focusing Dial

Easy adjustment

Brightness Level

3 levels

Polarization Mode

Blue light indication

Magnification

10x

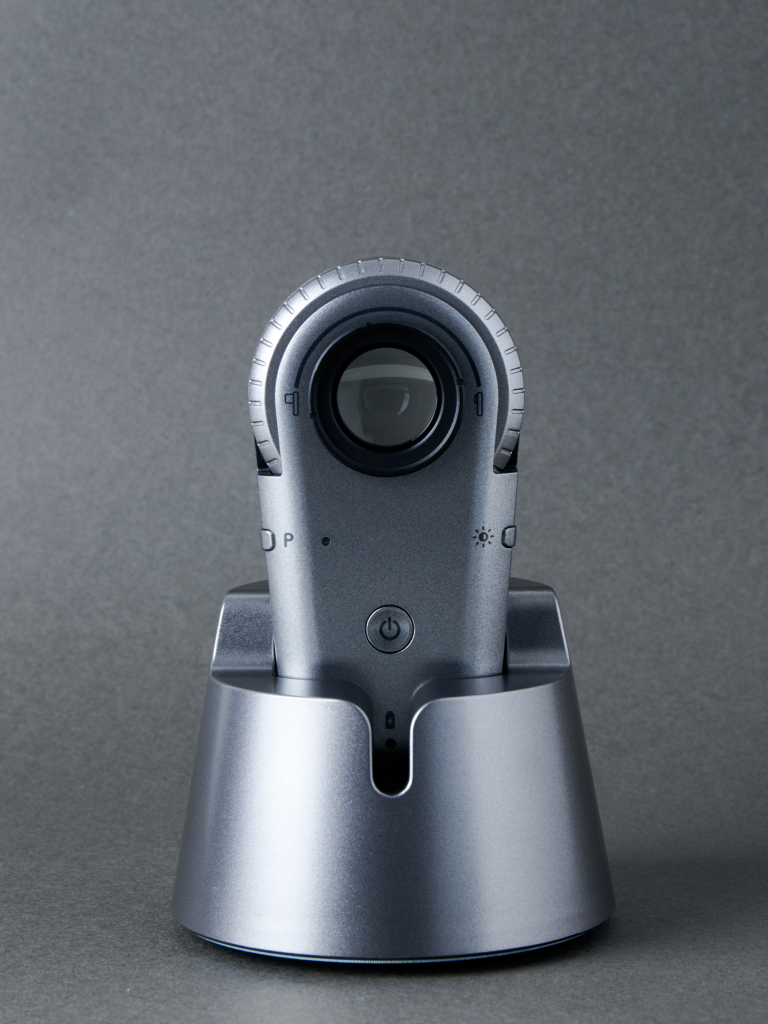

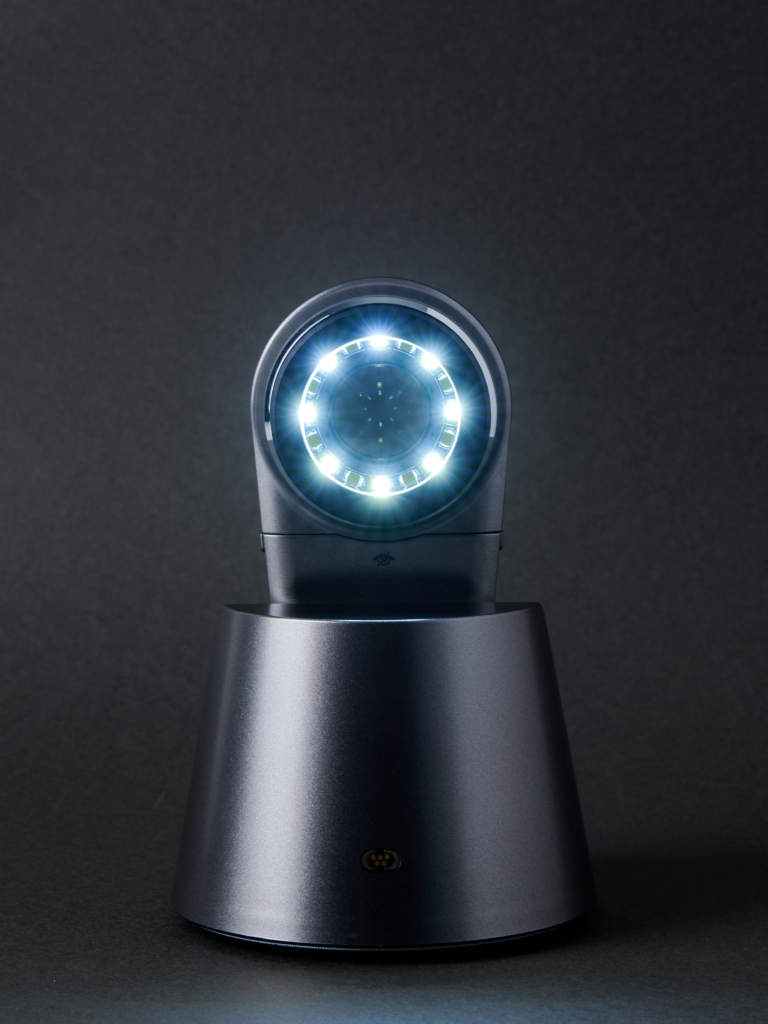

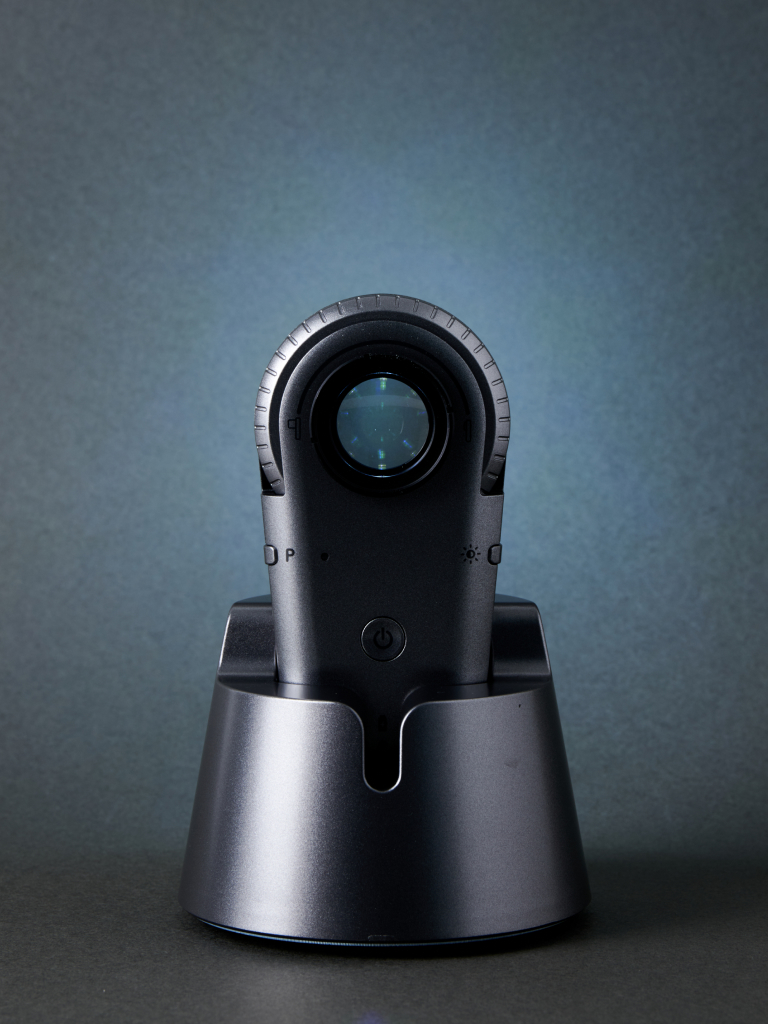

IDS-1100C, Dermatoscope with
table top charging station

Set up a position for the cradle on your desk, then your IDS-1100C will no longer float around on your desk.

Note

  • IDS-1100C uses magnetic charging cable.
  • The side of the device with the ILLUCO logo is the front.
  • The proper positioning will allow the IDS-1100 to slide in and settle on the magnet smoothly.

Difference between
IDS-1100 / IDS-1100C

Charging Port USB C Magnetic cable
Color Dark Grey Dark Silver
Charging Cradle -

Angiokeratoma

Nevus

Keratosis Seborrheica

Basal cell carcinoma

Actinic keratosis

Malignant melanoma

Dermatoscope Comparison

IDS-1000 Plus IDS-1100 IDS-1100C IDS-3100
Polarization Cross & Parallel Cross & Parallel Cross & Parallel Cross & Parallel
UV - - - 395, 405, 395+405
Aperture 18 mm 25 mm 25 mm 100 mm
Magnification 10x 10x 10x 2.5x
LED 8 White LEDs 32 White LEDs 32 White LEDs 64 White LEDs / 6 UV LEDs
Brightness Level 1 3 3 3
Smartphone Compatibility -
Charging Cradle - -
Focusing Dial - -
Battery Disposable Lithium 6V2CR5 Rechargeable Lithium 1150mAh / 3.7v Rechargeable Lithium 1150mAh / 3.7v Rechargeable Lithium lon 3400mAh / 3.7v

DETAILS

SPECIFICATION

Technical Specifications
Polarization Cross Polarization & Parallel Polarization
Lens diameter (Field of view) 25mm (22 mm)
Lens coating BBAR coating
Magnification 10 x
Brightness Control 3 levels
Adapter for Smartphone Applicable
LED 32 ea
LED life time 50,000 hours
Battery Rechargeable Lithium ion 1150mAh / 3.7v
Charging time 3 hours
Continuous duty time 2 hours
Charging terminal USB C type
New dimensions / weight 138 x 65 x 33 (mm) / 190g
Package dimensions / weight 190 x 190 x 85 (mm) / 520g
Diopter Compensation -6 ~ +6 diopter
Color rendering index (CRI) 90CRI
Color Temperature 7500K
