Dermatoscope / IDS-9100

IDS-9100

First-ever 12x magnification IDS-9100 delivers unmatched clarity for skin examinations. As the world’s first 12x dermatoscope, it takes your expertise to new heights.

download catalog download catalog
ids-9100 Back
PDB

Power On/Off Button Polarzation mode Button Brightness control Dial

ML

Magnifying lens

CP

Charging Port

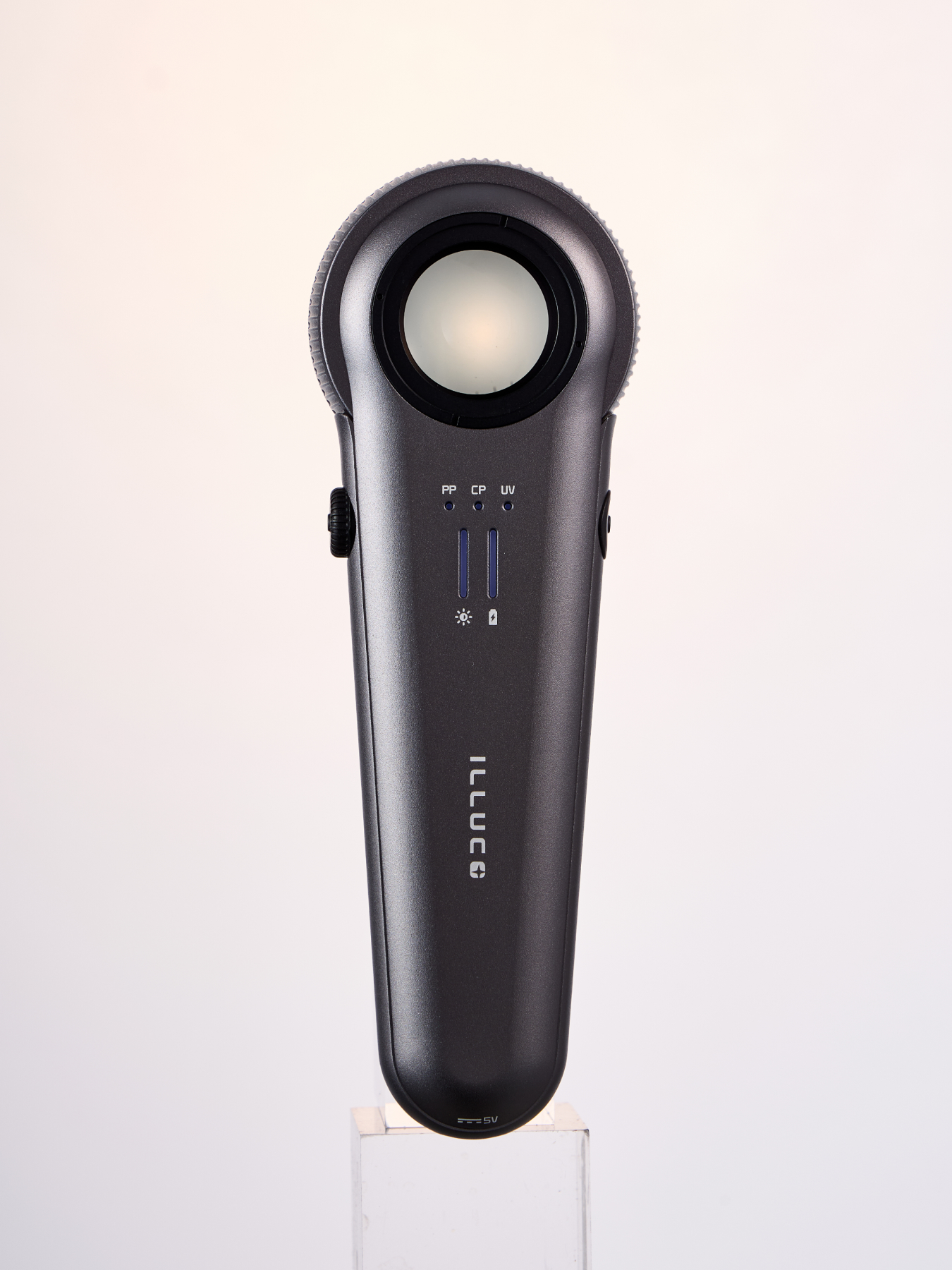

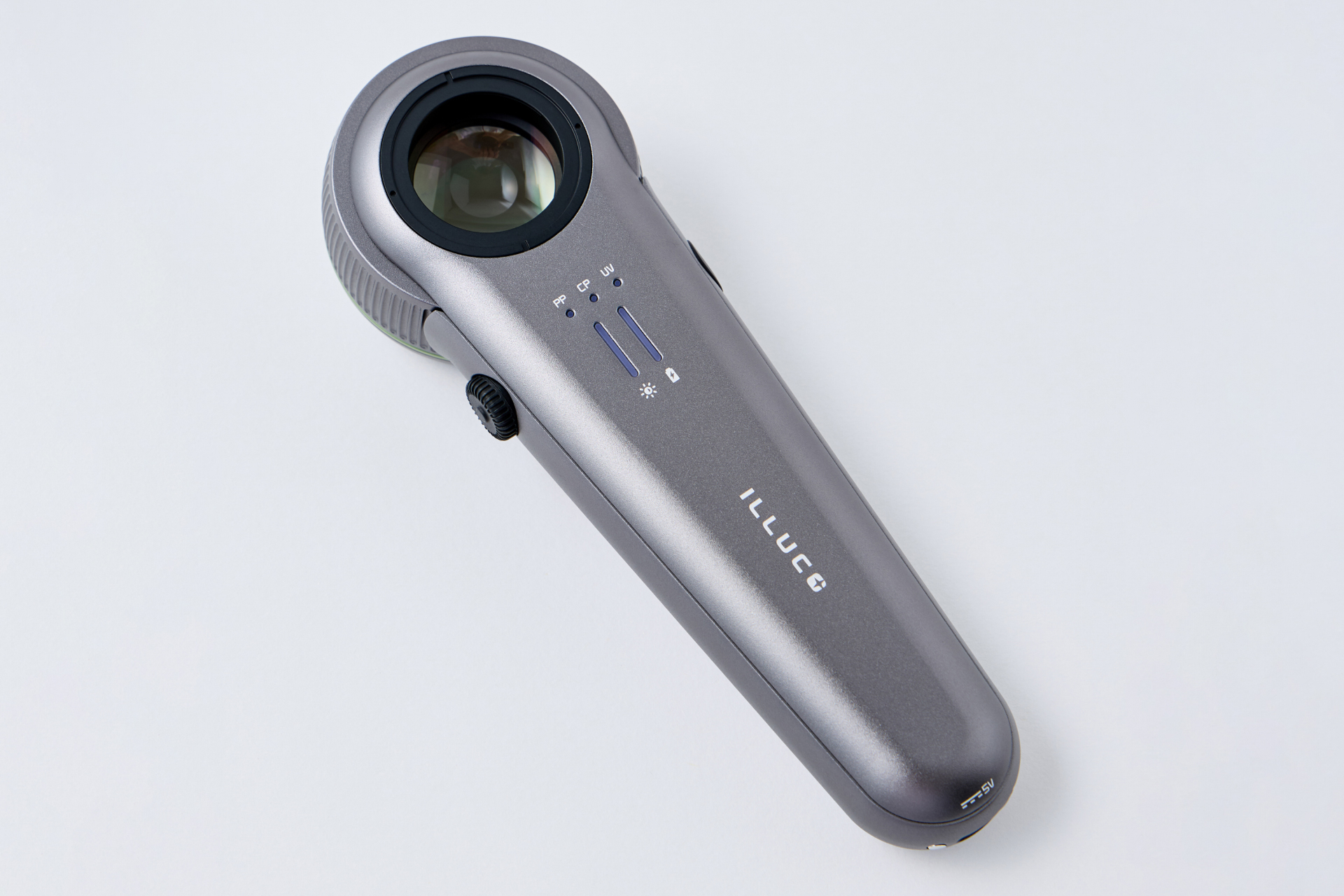

ids-9100 Front
PG

Protect Glass

UB

UV Button

CC

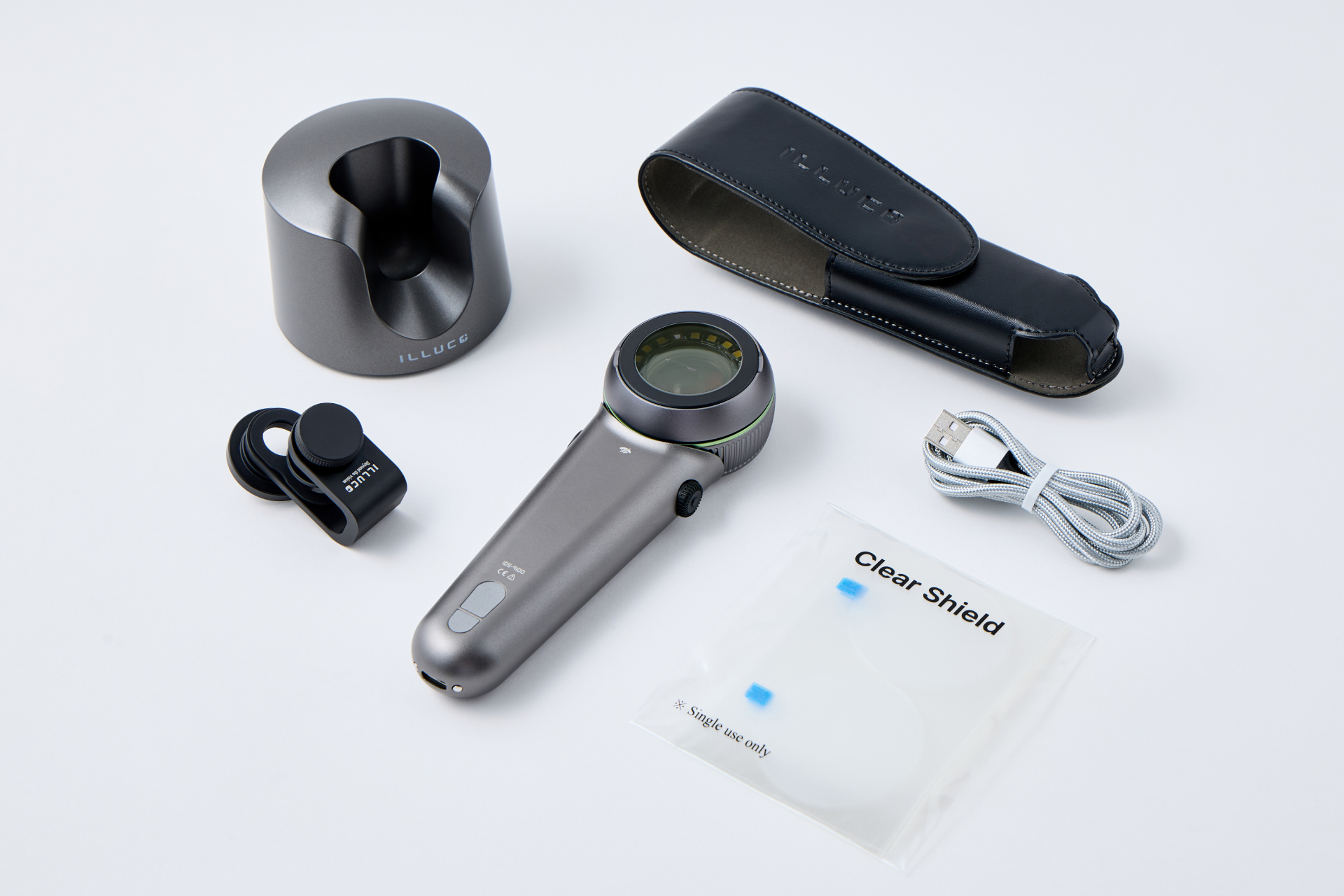

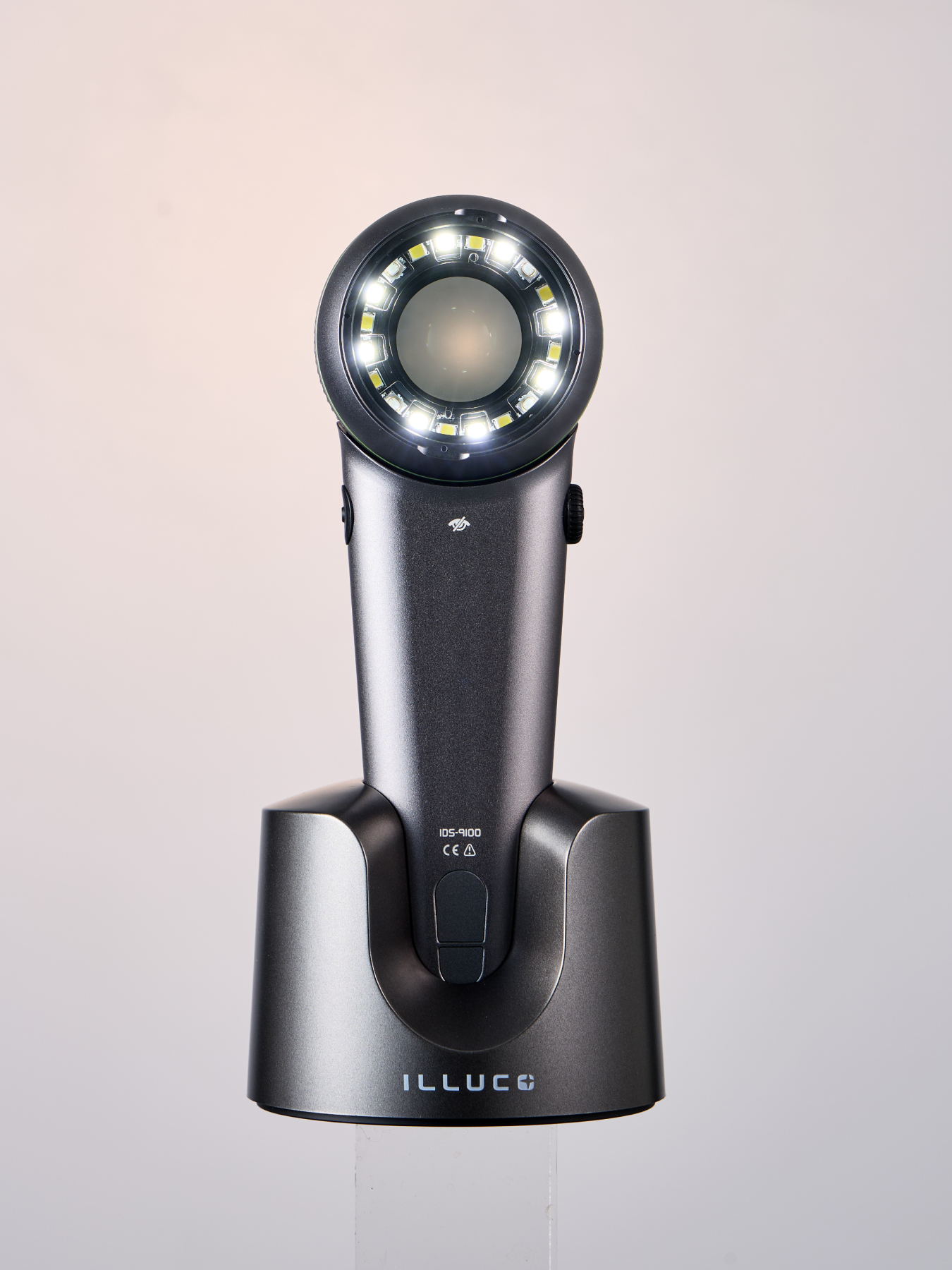

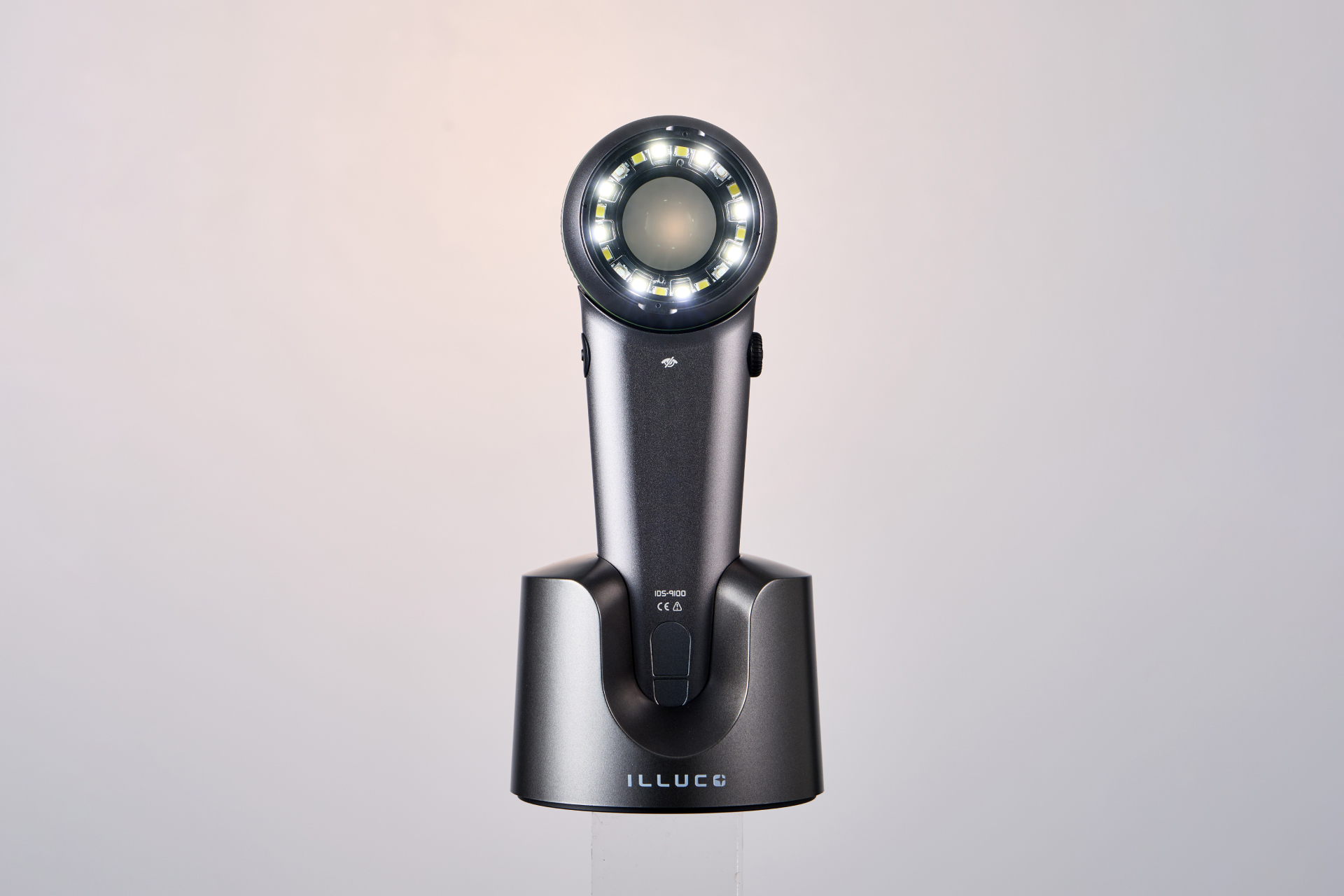

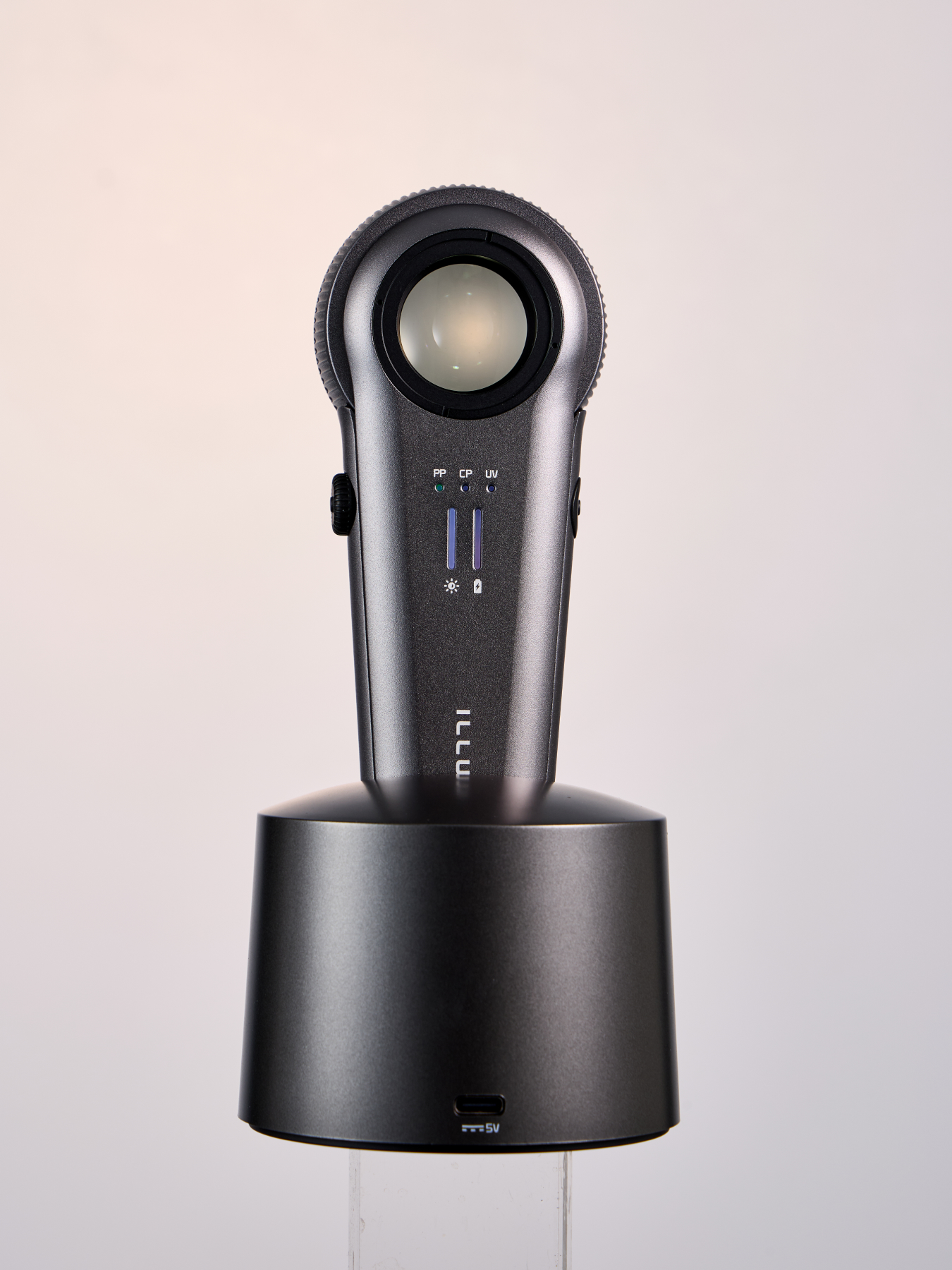

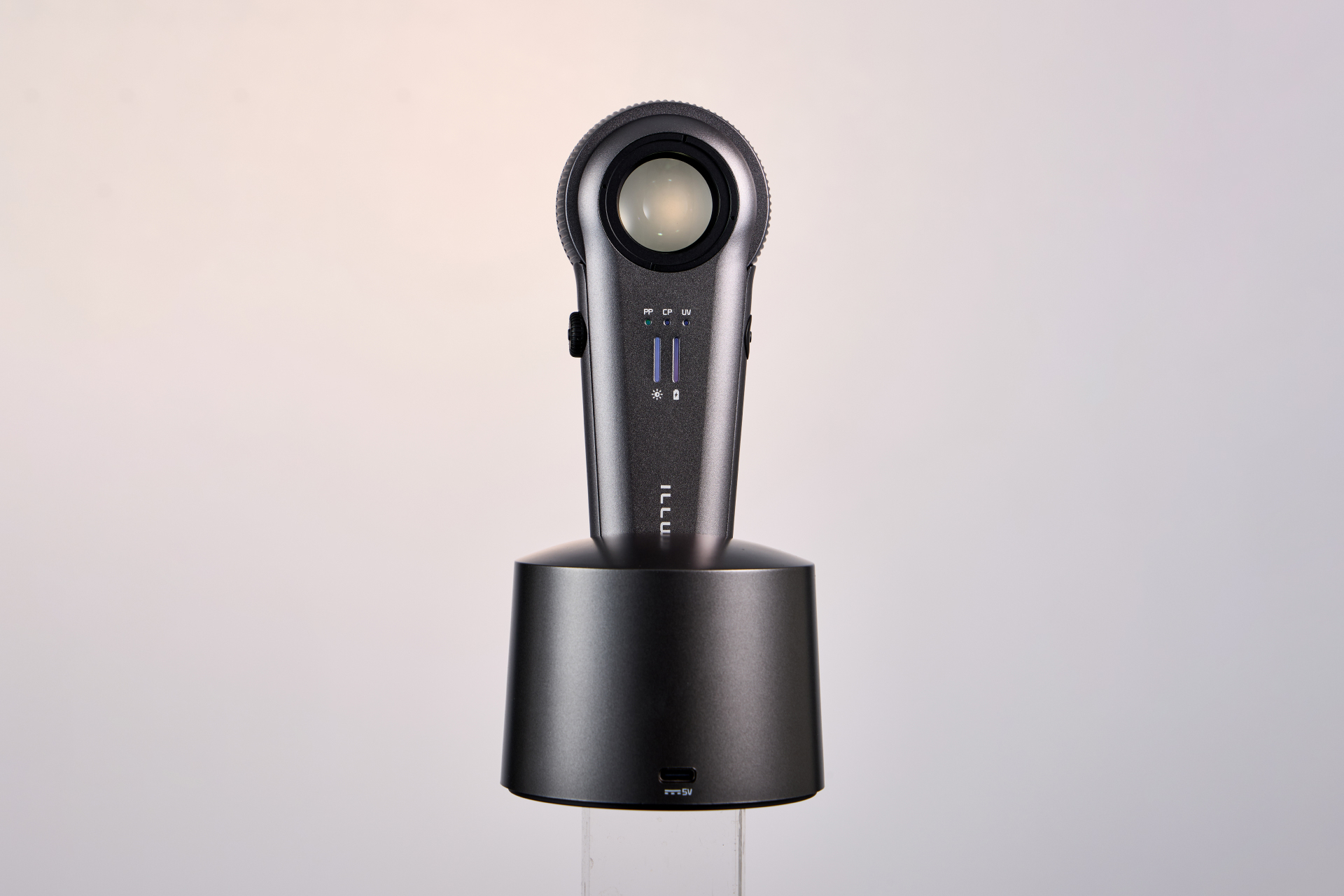

Charging Cradle

Product Overview

Dermatoscope Comparison

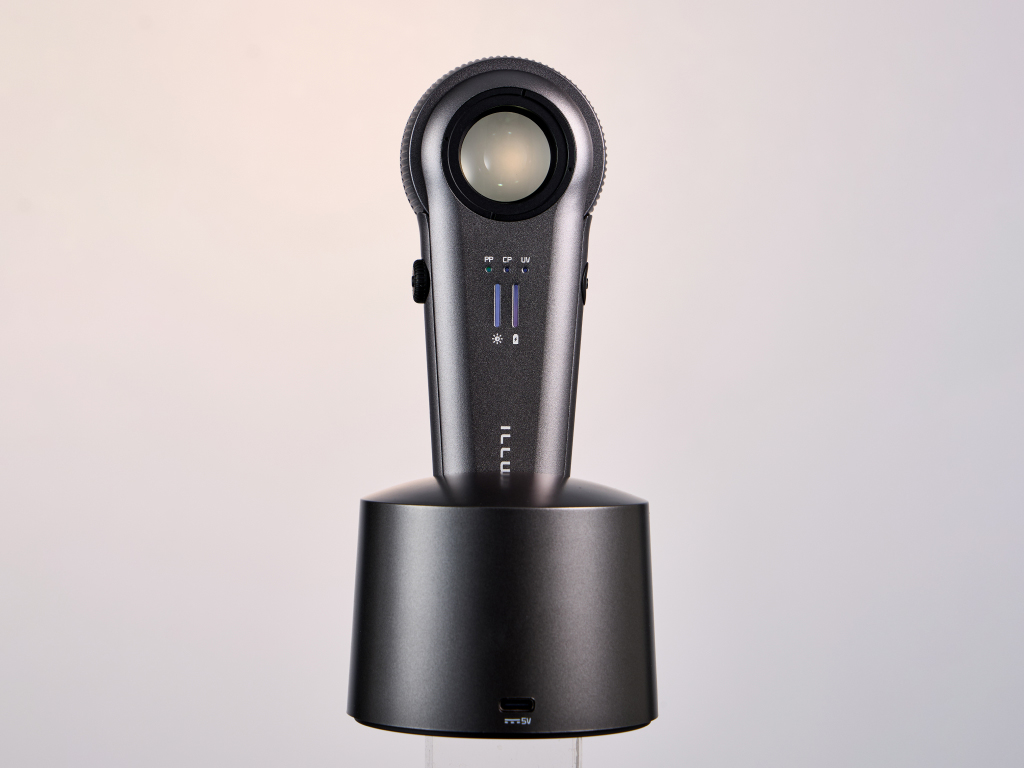

IDS-1000 Plus IDS-1100 IDS-1100C IDS-9100 IDS-3100
Polarization Cross & Parallel Cross & Parallel Cross & Parallel Cross & Parallel Cross & Parallel
UV - - - 365 395, 405, 395+405
Aperture 18 mm 25 mm 25 mm 23 mm 100 mm
Magnification 10x 10x 10x 12x 2.5x
LED 8 White LEDs 32 White LEDs 32 White LEDs 16 White LEDs / 4 UV LEDs 64 White LEDs / 6 UV LEDs
Brightness Level 1 3 3 4 3

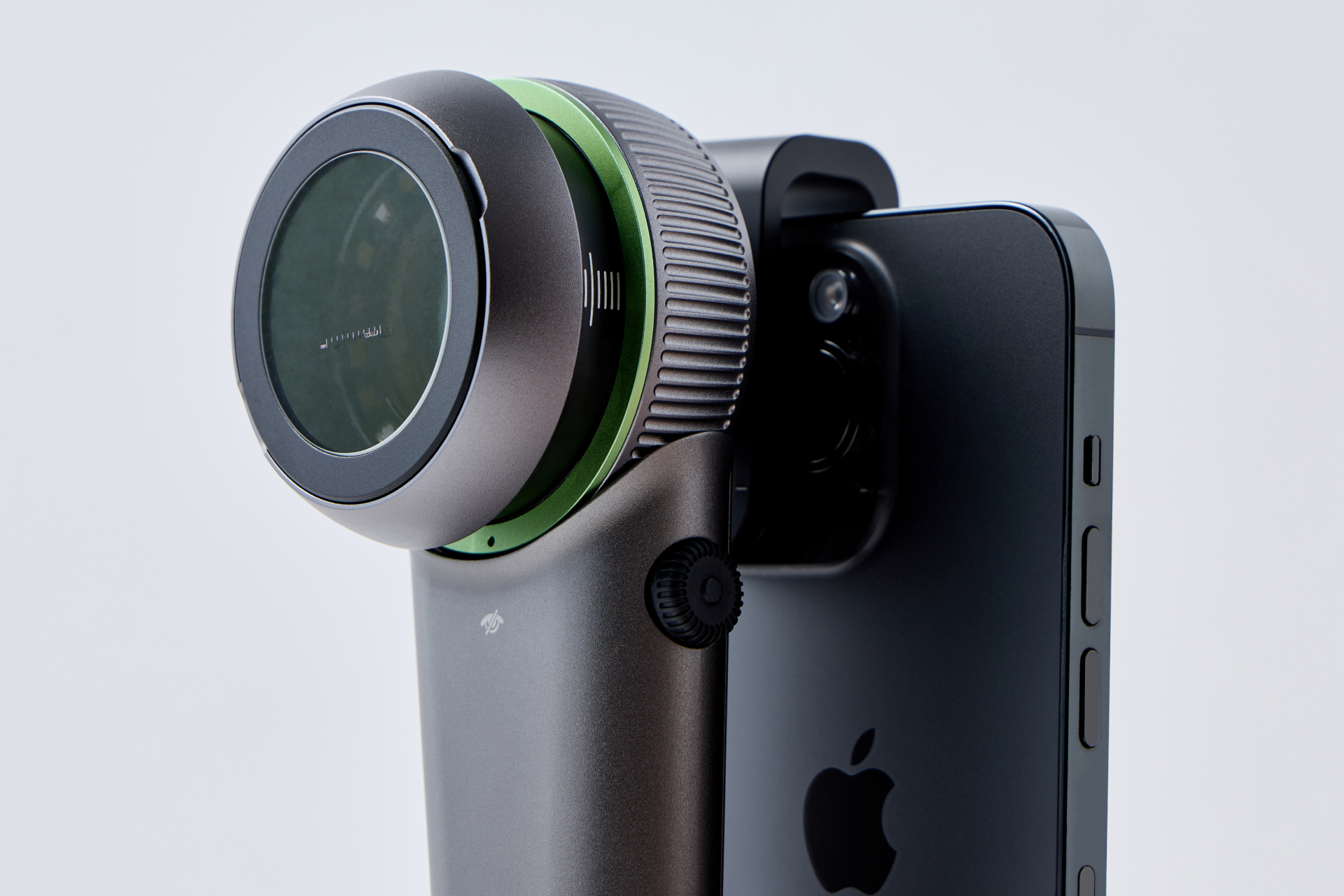

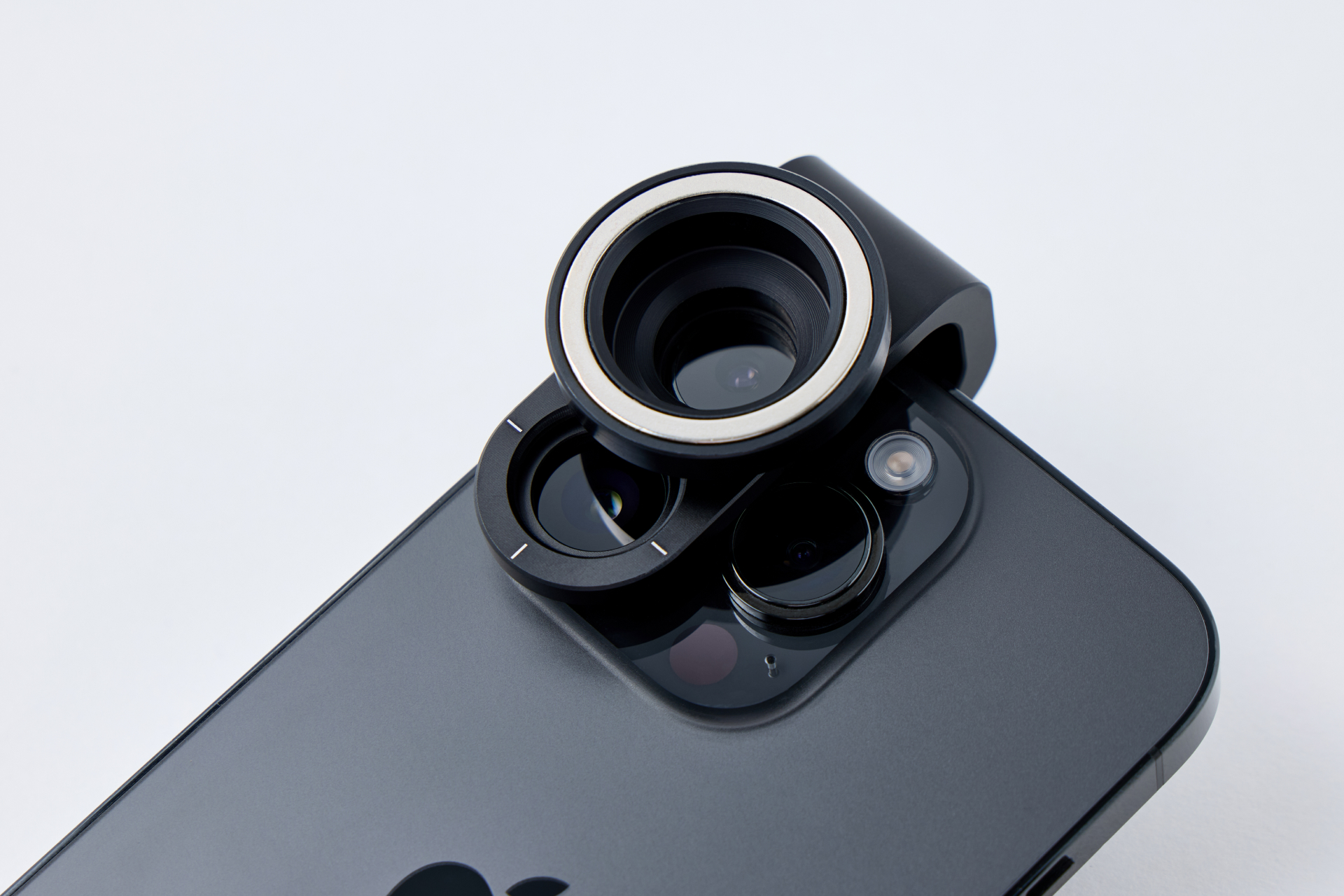

Smartphone Compatibility -
Charging Cradle - -
Focusing Dial - -
Battery Disposable Lithium 6V2CR5 Rechargeable Lithium 1150mAh / 3.7v Rechargeable Lithium 1150mAh / 3.7v Rechargeable Lithium Ion 3500 mAh / 3.7v Rechargeable Lithium lon 3400mAh / 3.7v

DETAILS

SPECIFICATION

Technical Specifications
Polarization Mode Parallel & Cross
UV Mode 380 nm
Magnification 12x
Lens diameter (Field of view) 20 mm
Diopter Compensation -6 ~ +6 diopter
Resolution 80 LP
Distortion Under 4%
Lens coating BBAR coating
Battery Rechargeable Lithium ion 3.7V 3500 mAh
Charging time 5 hours
Continuous duty time 3 hours 35 minutes
Charging terminal USB C type
Color rendering index (CRI) 90 CRI
Color Temperature 6500 K
Dimensions / weight 169x58x35.7 (mm) / 306 g
