UV Light Skin Magnifier

IDS-3100

:: IDS-3100

Different skin conditions can be

checked by appropriate

Light options & Magnification.

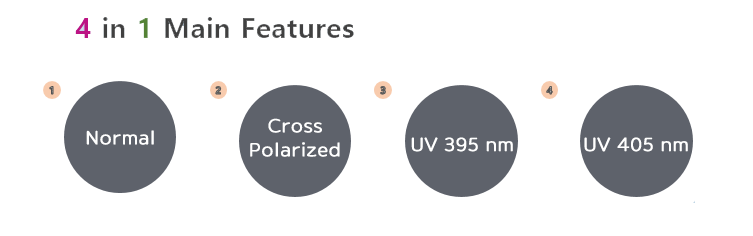

The 4 different light options of IDS-3100

[MAGNUM UV+] will help you to develop and

enhance your diagnostic skills

: UV Light Skin Examination [Wood's Light]

IDS-3100 has 3 options in UV light.

  • a. 4 x 405nm UV LED
  • b. 2 x 395nm UV LED
  • c. [2 x 395nm] + [4 x 405nm] UV LED

UV Light skin examination is used for Detection of

  • Bacterial or fungal skin infections,
  • Pigmented & hypo-pigmented skin lesions incl. melisma and vitiligo
  • Determining the location of the melanin pigment (epidermis & dermis)

IDS-3100 is a new concept of UV Light Magnifier that compensates the inconvenience of conventional wood's lamp. Moreover, its high power UV LED and specially designed lens coating present excellent UV fluorescence image.

: White Light Skin Examination

IDS-3100 has 2 options in White light.

  • a. Cross polarized light (polarized light)
  • b. Parallel polarized light (non-polarized light)

Cross polarized light skin examination is used for detection of

  • Actinic keratosis,
  • Non-melanoma skin cancers, and
  • Melanoma

by reducing the reflection of the skin surface. It allows a quick examination of pigmented
skin lesions prior to precise analysis using a dermatoscope.

: Presents excellent visual acuity

IDS-3100 [MAGNUM UV+] is designed to perform its designated functions with high level quality.


  • Specially designed aspherical lens reduces spherical and optical aberrations and presents clear image with min. distortion.
  • In addition, specially disigned lens coatings make the object seen through the lens
    look more accurate and clear.

: Designed with your comfort in mind

  • 100MM large field of view
  • Effective focal length and working distance

           working distance (eye to lens): 90 ~ 150mm

           focal length (lens to skin): 65 ~ 150mm

           The effective distance between "eye to lens"
           and "lens to skin" make your work

               more easy and comfortable.

  • 3 level of brightness
  • Automatic shutdown after 5 min.

: Remarkable Features

  • 2.5 x Magnification
  • 100mm large field of view.
  • 300g light weight: easy to handle.
  • Nano Hybrid Hard Coating enhances UV transmittance and lens protection,
    and prevent contamination and scratches.
  • Aspherical lens minimizes distortion and improves visual acuity.
  • Automatic shut down after 5 minutes idle run
  • Easy store and charging (charging station)

: Applications

  • Dermatology
  • Veterinary Medicine
  • General Medicine
  • Esthetics
  • Vitiligo
  • Milium
  • Acne pigmentation
  • Sebum
  • Actinic Keratosis, Squamous cell carcinoma (PDD)
  • Pityriasis versicolor
  • Capillary
  • Pigmented & Hypo-pigmented skin lesions
  • Cutaneous fungal, Bacterial infection
  • Skin inflammation

:: IDS-3100

Different skin conditions can be checked by appropriate

Light options & Magnification.

The 4 different light options of IDS-3100 [MAGNUM UV+] will help you

to develop and enhance your diagnostic skills

: UV Light Skin Examination [Wood's Light]


IDS-3100 has 3 options in UV light.

  • a. 4 x 405nm UV LED
  • b. 2 x 395nm UV LED
  • c. [2 x 395nm] + [4 x 405nm] UV LED

UV Light skin examination is used for Detection of

  • Bacterial or fungal skin infections,
  • Pigmented & hypo-pigmented skin lesions incl. melisma and vitiligo
  • Determining the location of the melanin pigment (epidermis & dermis)

IDS-3100 is a new concept of UV Light Magnifier that compensates the inconvenience of conventional wood's lamp. Moreover, its high power UV LED and specially designed lens coating present excellent UV fluorescence image.

: White Light Skin Examination


IDS-3100 has 2 options in White light.

  • a. Cross polarized light (polarized light)
  • b. Parallel polarized light (non-polarized light)

Cross polarized light skin examination is used for detection of

  • Actinic keratosis,
  • Non-melanoma skin cancers, and
  • Melanoma

by reducing the reflection of the skin surface. It allows a quick examination of pigmented
skin lesions prior to precise analysis using a dermatoscope.

:> Presents excellent visual acuity


IDS-3100 [MAGNUM UV+] is designed to perform its designated functions with high level quality.


  • Specially designed aspherical lens reduces spherical and optical aberrations and presents clear image with min. distortion.
  • In addition, specially disigned lens coatings make the object seen through the lens
    look more accurate and clear.

:> Designed with your comfort in mind


  • 100MM large field of view
  • Effective focal length and working distance

               working distance (eye to lens): 90 ~ 150mm

               focal length (lens to skin): 65 ~ 150mm

              The effective distance between "eye to lens" and "lens to skin" make your work

               more easy and comfortable.

  • 3 level of brightness
  • Automatic shutdown after 5 min.



:> Remarkable Features

  • 2.5 x Magnification
  • 100mm large field of view.
  • 300g light weight: easy to handle.
  • Nano Hybrid Hard Coating enhances UV transmittance and lens protection,
    and prevent contamination and scratches.
  • Aspherical lens minimizes distortion and improves visual acuity.
  • Automatic shut down after 5 minutes idle run
  • Easy store and charging (charging station)

:> Applications

  • Dermatology
  • Veterinary Medicine
  • General Medicine
  • Esthetics
  • Vitiligo
  • Milium
  • Acne pigmentation
  • Sebum
  • Actinic Keratosis, Squamous cell carcinoma (PDD)
  • Pityriasis versicolor
  • Capillary
  • Pigmented & Hypo-pigmented skin lesions
  • Cutaneous fungal, Bacterial infection
  • Skin inflammation


Technical Specifications
Polarization Mode
Parallel & Cross
UV Mode395nm & 405nm
Magnification2.5 x
Field of View100 mm
Weight370 g
LensAspherical lens
ExaminationBinocular Examination
Resolution23 LP
CoatingAR Coating
DistortionUnder 3%
LED64 x White LEDs / 6 x UV LEDs
Intensity of IlluminatonSMD type 3,500 ~ 4,000 Lux
Brightness Control3 leves
LED life100,000 hours
Power SupplyRechargeable / 3,400mAh
Sleep Mode5 mins after not in use
Charging MethodMicro USB 5 pin or Charging Cradle
Charging Time8.5 hours
Continuous Duty Time2.5 ~ 4 hours

:> Skin Examination Images [IDS-3100 MAGNUM UV+]

UV light skin examinationSkin examination images [IDS-3100 MAGNUM UV+]: UV Light (Wood's Lamp) and White Light Magnifier

UV light skin examinationSkin examination images [IDS-3100 MAGNUM UV+]: UV Light (Wood's Lamp) and White Light Magnifier

White light skin examination (polarization light)Skin examination images [IDS-3100 MAGNUM UV+]: UV Light (Wood's Lamp) and White Light Magnifier

UV light skin examination (wood's light)Skin examination images [IDS-3100 MAGNUM UV+]: UV Light (Wood's Lamp) and White Light Magnifier

UV light skin examination (wood's light)Skin examination images [IDS-3100 MAGNUM UV+]: UV Light (Wood's Lamp) and White Light Magnifier

UV light skin examination (Wood's light)Skin examination images [IDS-3100 MAGNUM UV+]: UV Light (Wood's Lamp) and White Light Magnifier

White light skin examination (polarization light)Skin examination images [IDS-3100 MAGNUM UV+]: UV Light (Wood's Lamp) and White Light Magnifier
