Dermatoscope

Reinvented by optical experts



IDS-1100's best optics, large filed of view, highly optimized light illumination guarantee you the best performance during your dermoscopy examinations.


Hybrid dermatoscope with polarized and non-polarized light illumination

  • Polarized light contact dermoscopy (PCD)
  • Polarized light non-contact dermoscopy (PNCD)
  • Non-polarized light contact dermoscopy (NPD)



The capabilities of NPD, PCD and PNCD are not equivalent but complementary. Therefore hybrid dermatoscope IDS-1100 with all the capabilities will be a valuable tool in your diagnosis of pigmented and non-pigmented skin lesions.


Increasing the clinical diagnostic accuracy and improving your confidence in your clinical diagnosis.

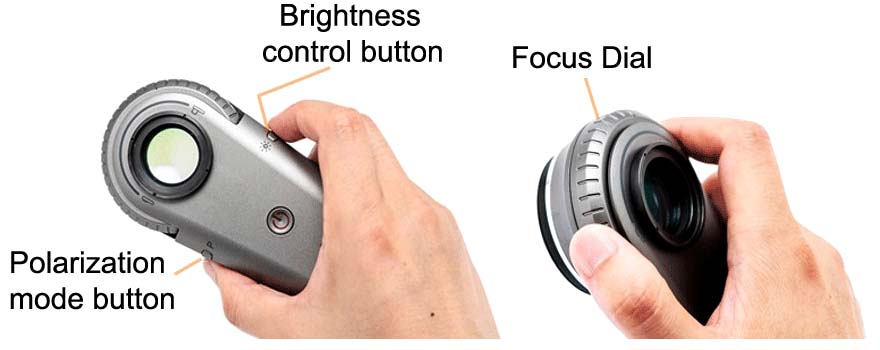

Remarkable Features of IDS-1100


  • 10 x Magnification & 25 mm wide field of view (Aperture)
  • Smartphone connection kit is available for iPhone and Samsung Galaxy & Note
  • Automatic shut down after not in use more than 5 minutes
  • An easy detachable protect glass for the lesions shouldn't be touched during the examination. The quality of the examination remains same whatever with or without the protect glass
  • 7 years warranty


Applications

  • diagnosis of malignant melanoma skin cancers
  • a close up examination of many skin diseases including folliculitis, xeroderma pigmentosum, lentigo maligna, dermatofibroma, scar tissue, vascular supply and a variety of nevus
  • studying normal skin
  • examining diseased skin
  • noninvasive monitoring of skin during a treatment
  • use as a diagnostic tool in a dermatology clinic
  • subsurface examination
  • hair research



Technical Specifications
PolarizationCross Polarization & Parallel Polarization
Field of view22 mm
Lens coatingSpecial BBAR coating
Magnification10 x
Brightness Control3 levels
Adapter for SmartphoneApplicable
LED32 ea
BatteryRechargeable Lithium ion 1150mAh / 3.7v
Charging time3 hours
Continuous duty time2 hours
Charging terminalMicro USB 5 pin
New dimensions / weight138 x 65 x 33 (mm) / 190g
Package dimensions / weight190 x 190 x 85 (mm) / 520g

Lesions taken by dermatoscope IDS-1100

Accessories (Additional items)

  • To check up for narrow areas which are hard to reach such as between fingers, beside nose and etc.
  • Genuine leather pouch BLACK / RED
  • To take a photo of a lesion looking though IDS-1100
