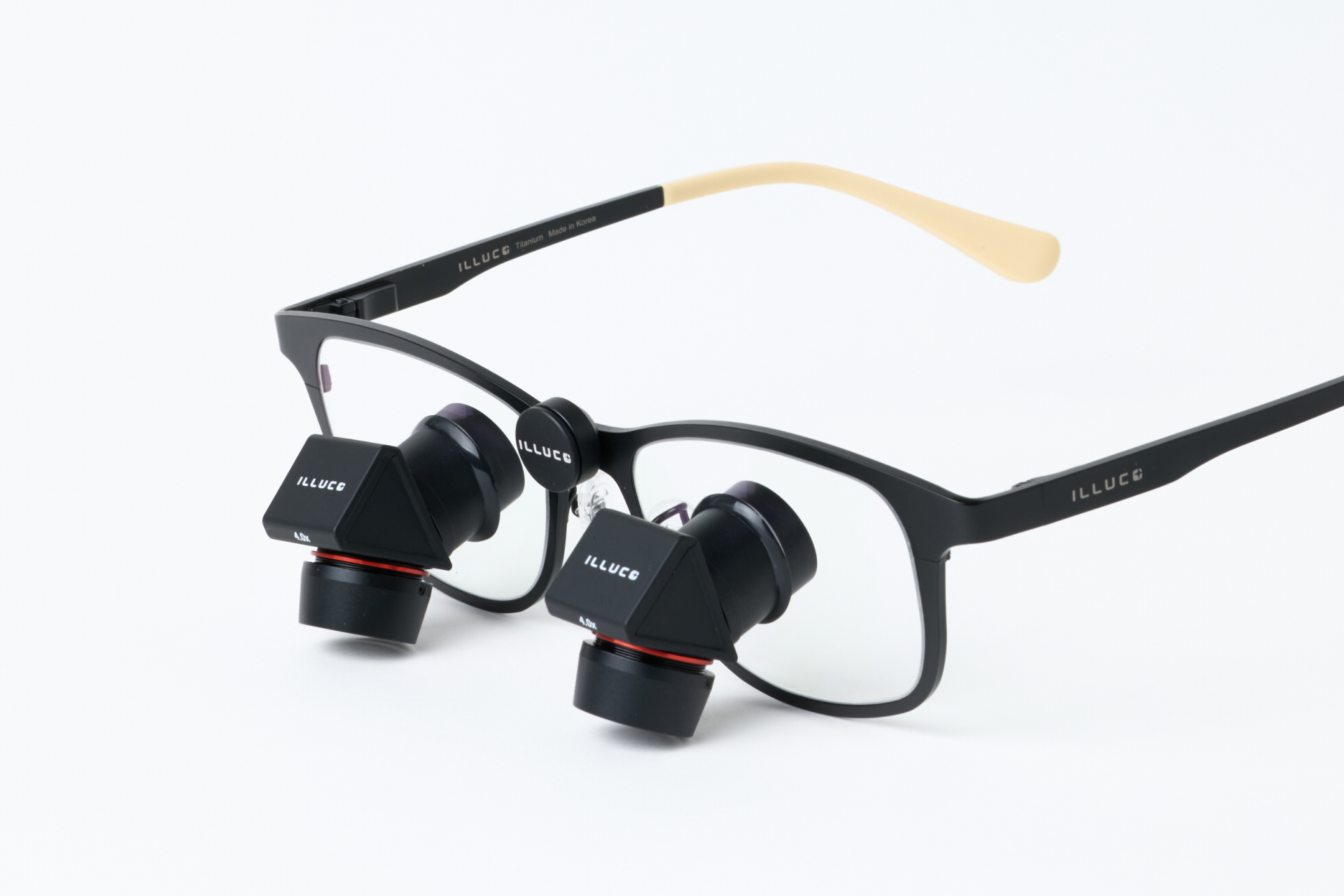

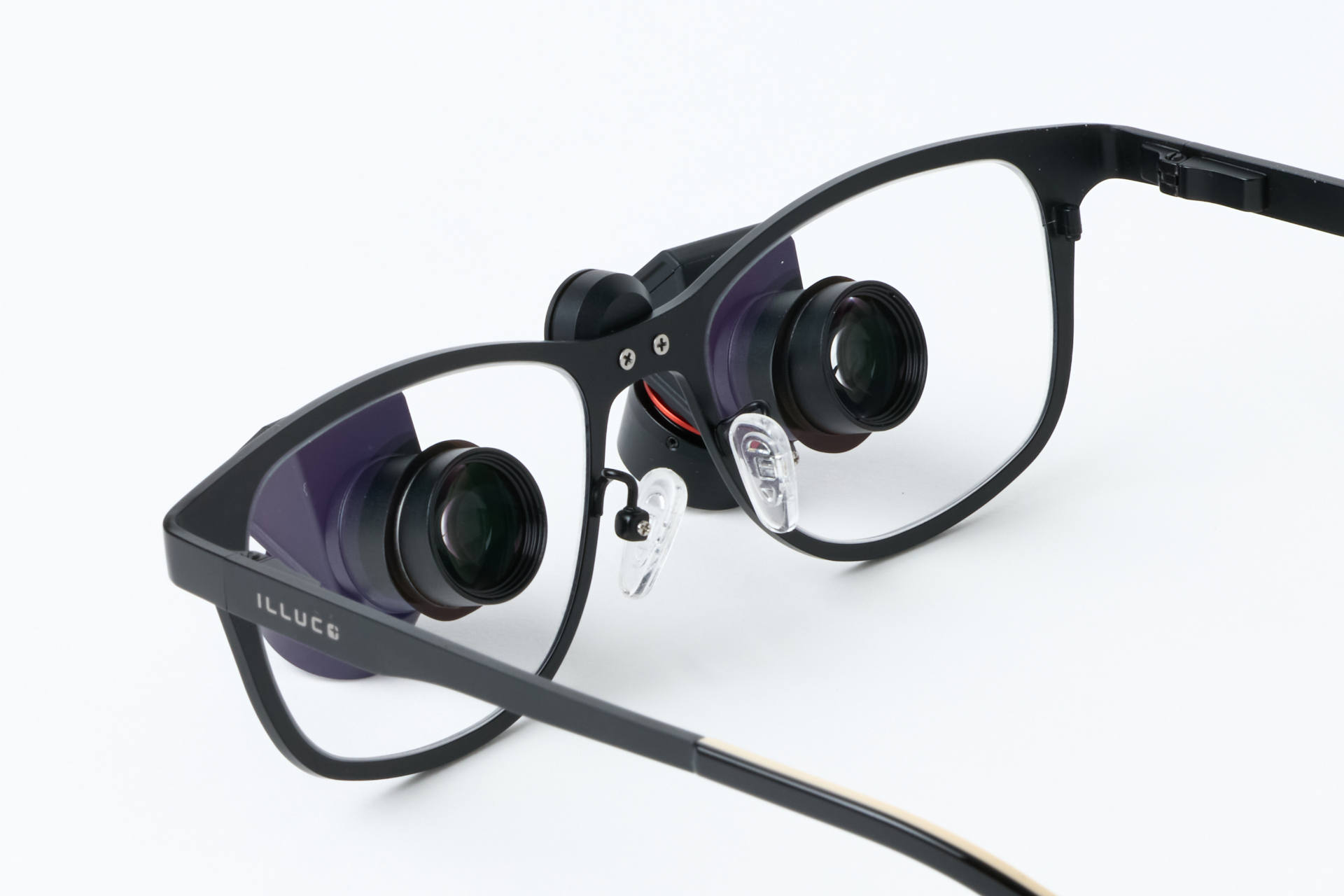

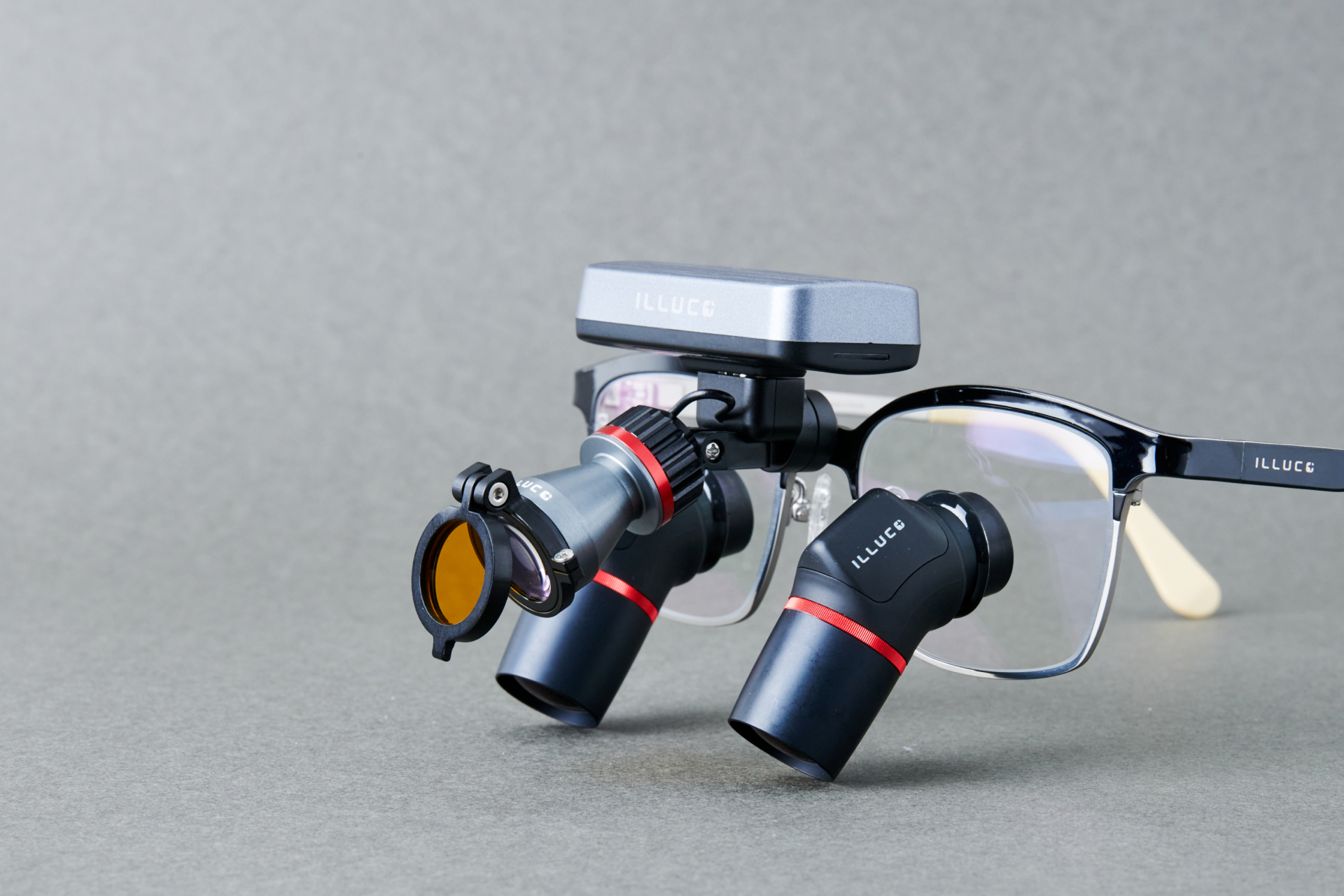

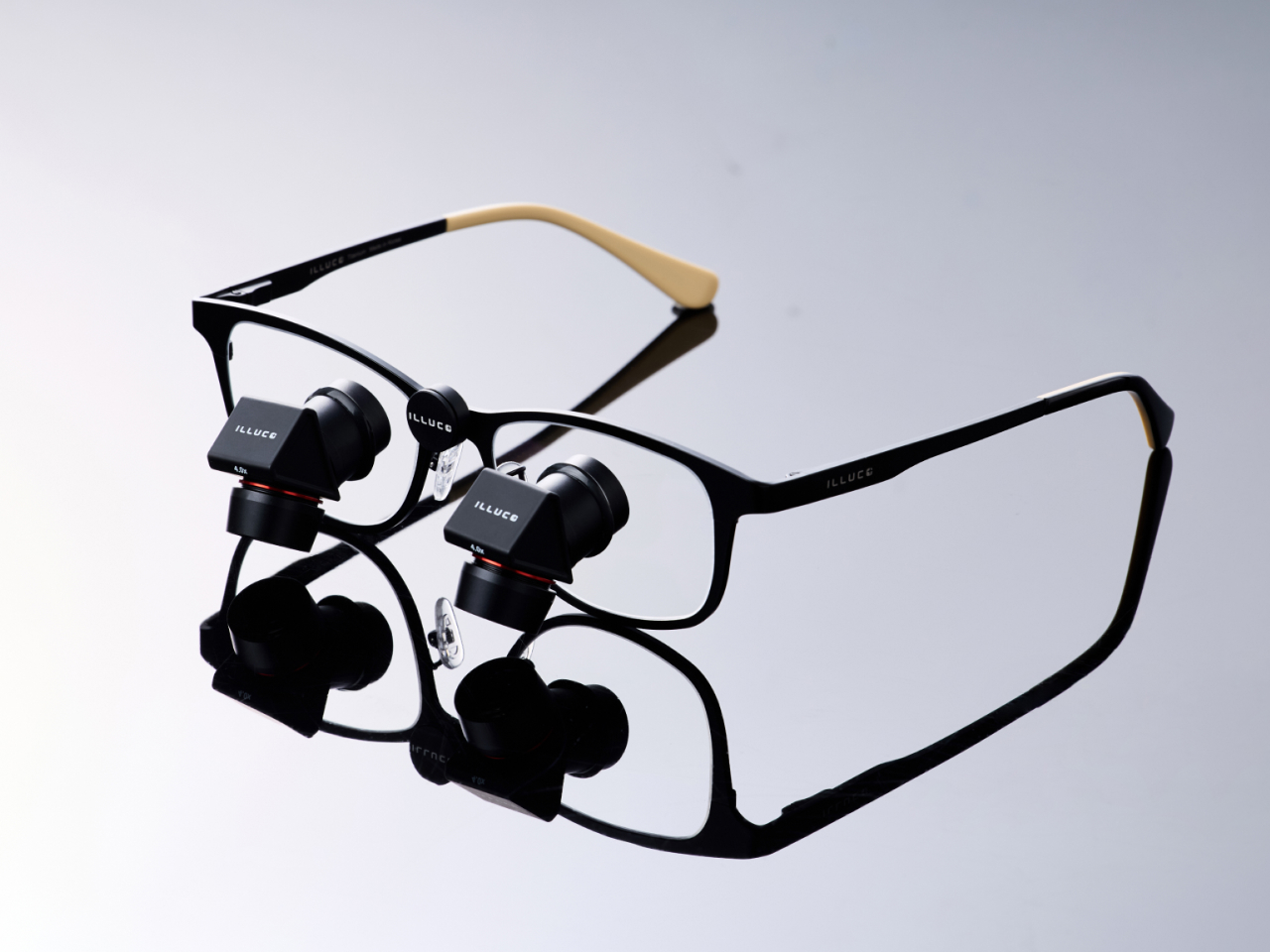

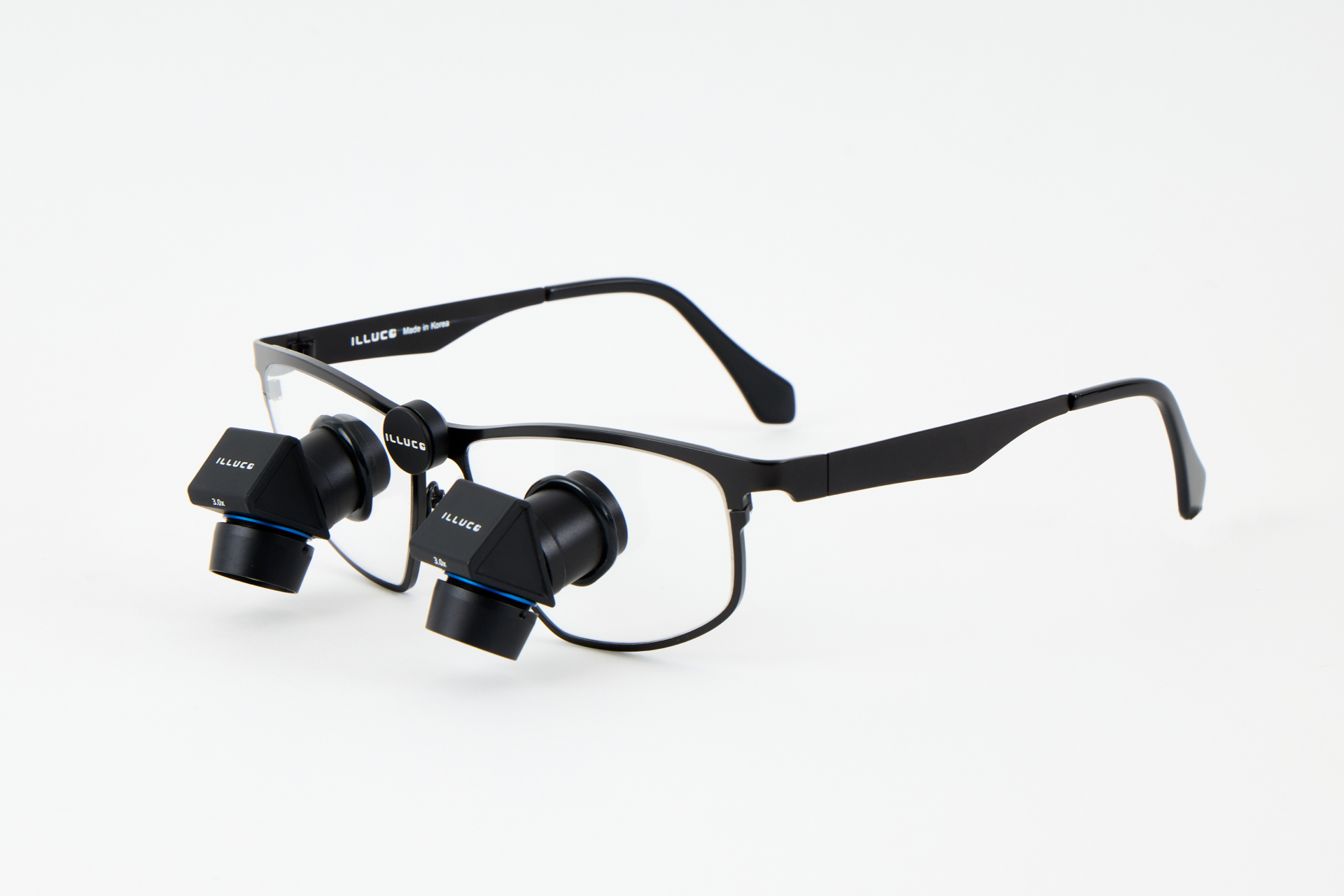

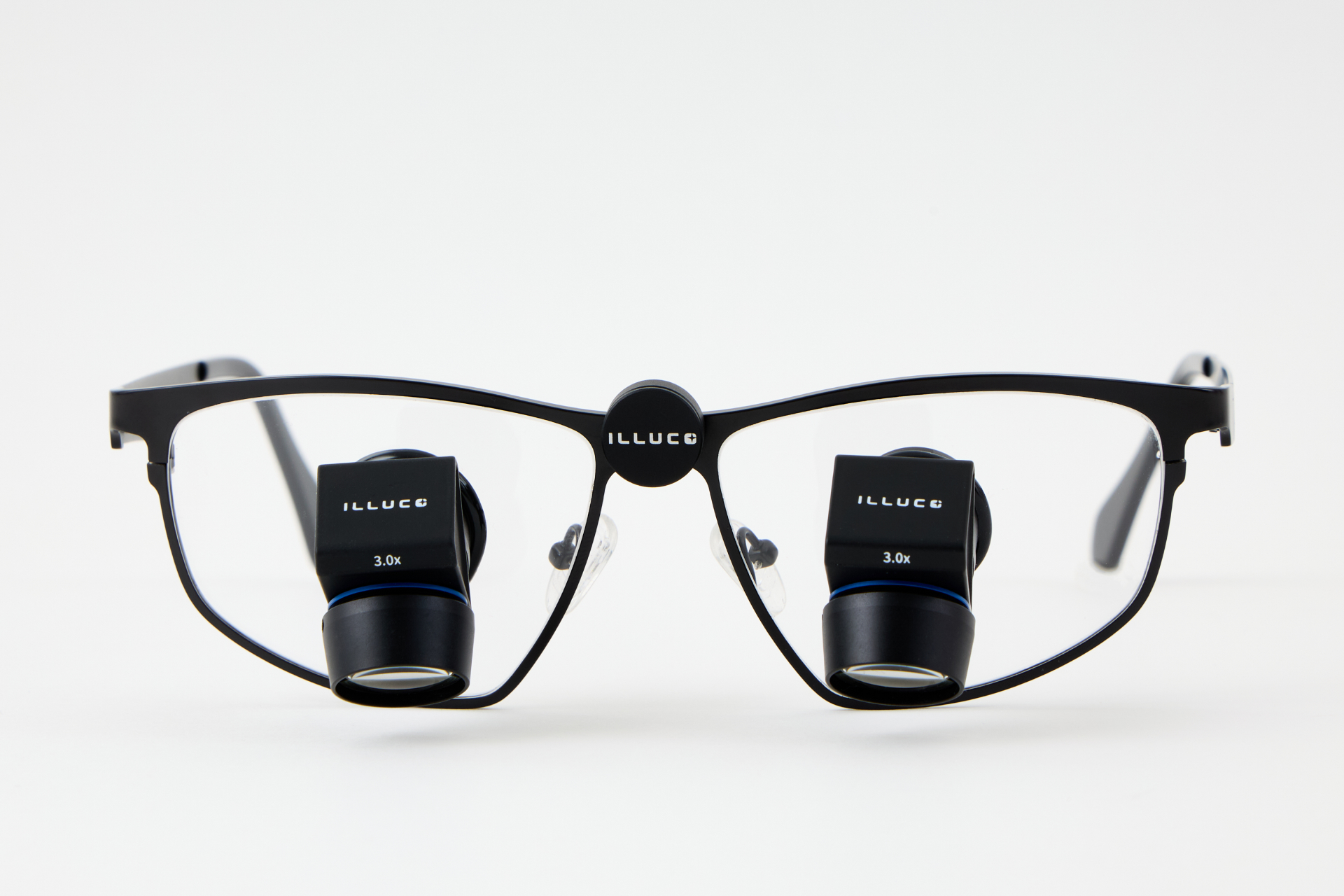

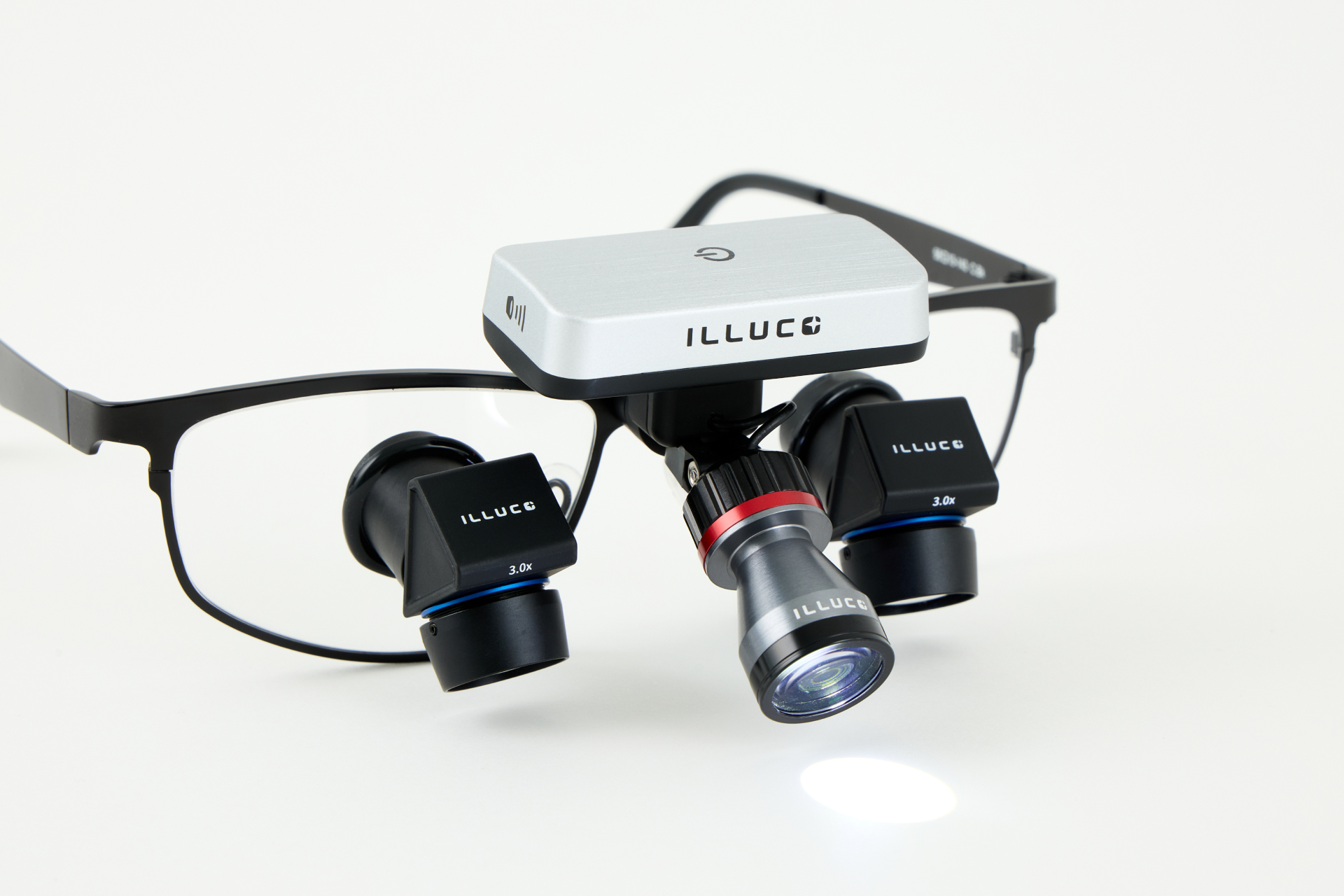

Angled (ergonomic) Loupes

ILLUCO’s ergonomic angled loupes provide all-day comfort, reduce neck strain, and enhance posture with superior 3.0x and 4.0x magnification optics.

ILLUCO Loupes:

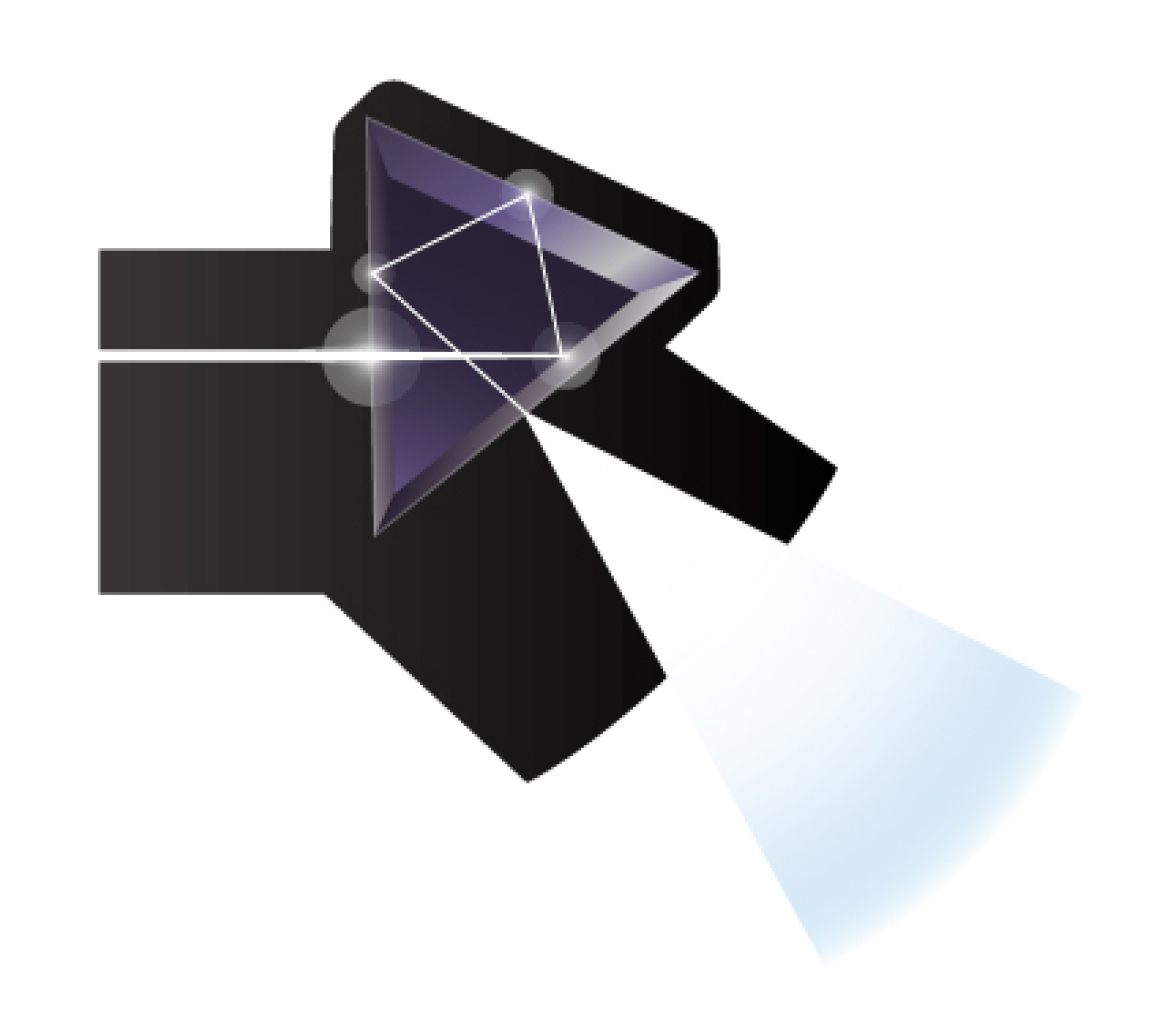

Ergonomic Posture

ILLUCO Loupes are designed to reduce strain and fatigue on the
user's neck and back during prolonged use.

Ergonomic posture

ILLUCO Loupes are designed to reduce strain and fatigue on the user's neck and back during prolonged use.

BBAR Coating

Anti-Reflection coatings are deposited onto optical surfaces to reduce specular reflectivity. These designs are optimized to create destructive interference with respect to the reflected light and will allow the maximum amount of light transmission without compromising image quality. BBAR coatings are designed to enhance transmission over a broader wavelength range compared to traditional AR coatings.

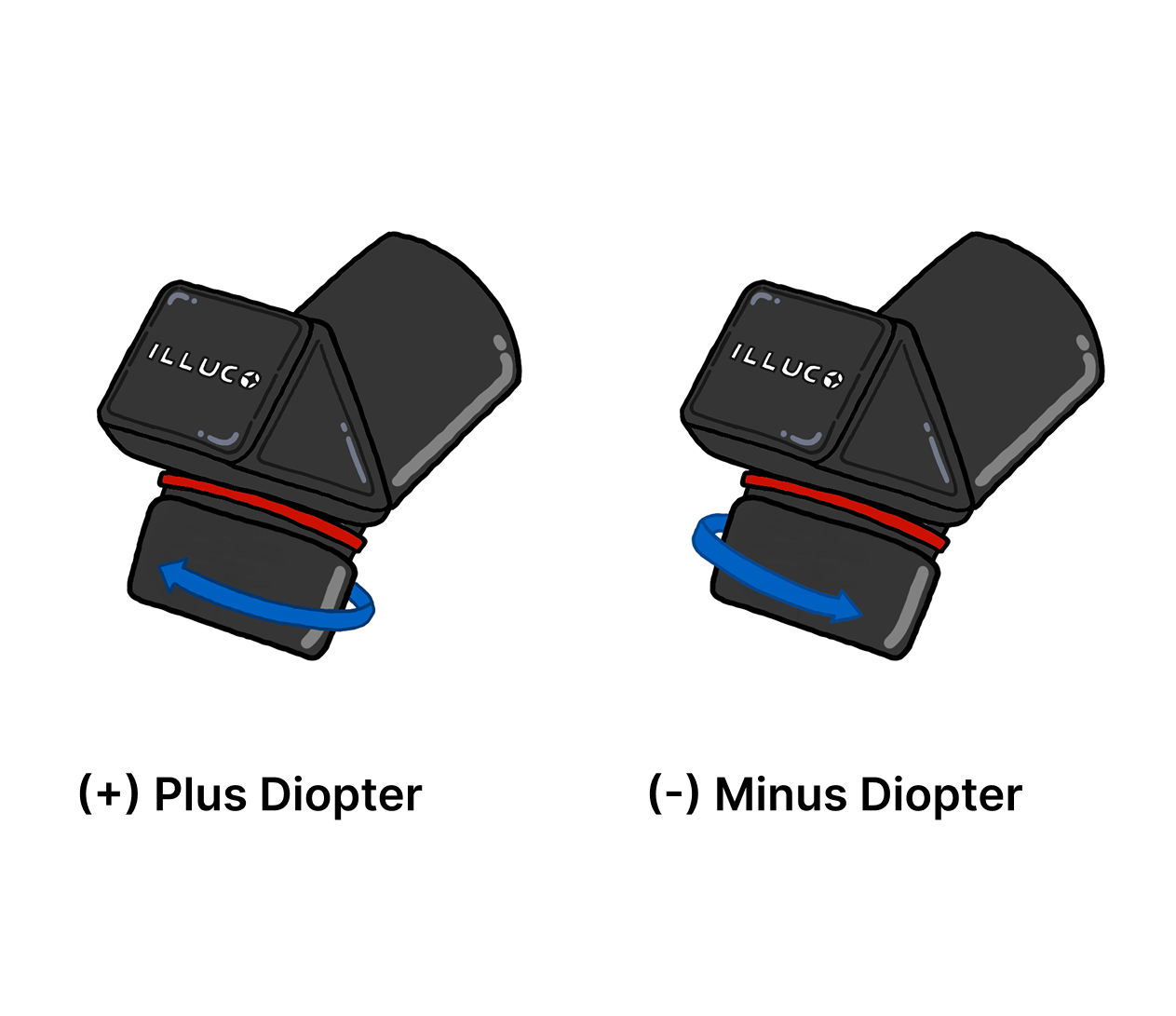

Diopter Compensation

Illuco diopter compensation refers to the adjustment of the optical power (measured in diopters) of a loupe to compensate for the user's vision.

Diopter compensation is necessary when the user's eyesight differs from the standard vision (i.e., they are nearsighted, farsighted, or have astigmatism). By adjusting the diopter, the loupe can be customized to the user's prescription, ensuring clear and comfortable vision without the need for additional corrective lenses, like glasses. In practical terms, a loupe with diopter compensation allows a user to fine-tune the focus based on their specific visual needs, optimizing the clarity of the magnified image.

IDEA AWARD WINNER

Digital Measurement

We use digital measurement system as a complete dispensing solution that helps Eye Care Professionals (ECPs) assist patients at all stages of the eyewear dispensing process.

This revolutionary tool gets you a step closer to offering your patients a unique eye measurement experience.

DETAILS

SPECIFICATION

Model Style Magnification Field of View (Cm, @45Cm) Depth of Field (Cm) Working Distance (Cm) Resolution (lp/mm) Weight w/o frame (g)
IAL-1030A TTL, Angled 3.0x 9 6 45 ~ 65 13 44
IAL-1040A TTL, Angled 4.0x 7.5 4 45 ~ 65 15 58
